VACUUM SOLAR DIRECT PRESSURE COLLECTORS

Solar water heating systems very efficiently replace expensive ways of heating water such as: electric and gas heaters. By installing solar heating systems and domestic hot water, it enables: households, public institutions and companies to significantly reduce the cost of energy consumed.

Low pressure solar vacuum systems are best for homes with easy plumbing.

In our country and in the Balkans, there are good conditions for installing solar systems, ie there are no geographical restrictions. For colder climates, manufacturers have designed systems that protect components from freezing. Wherever the sun shines, solar systems can heat water.


Vacuum solar systems use natural convection as a means of heat transfer. The system contains a storage tank and vacuum tubes as the main components. Vacuum pipes are directly connected to the tank (solar water heater). The vacuum tube consists of two concentric glass tubes, closed (sealed) at one end.
A solar water heater is a device that provides hot water for bathing, washing, cleaning, etc.



Vacuum tubular solar collectors convert solar energy into useful heat in a solar water heating system.

This energy can be used for: domestic heating, pool heating, space heating or even air conditioning.

The principle of operation of the solar vacuum collector is simple. The solar vacuum tube works similarly to a thermos coffee bottle. It consists of two layers of glass with a vacuum between the layers.

The heat absorbed (heat absorption 93%, and temperatures above 150 ° C) is transferred inside the water with minimal losses due to vacuum insulation between the pipes.

The pipe is resistant to corrosion and weather hail (hail) up to a size of 25 mm.

On the other hand, due to the distance between the pipes, the system does not allow snow to accumulate, and is resistant to snow speeds up to 100km / h.
There are basically two types of solar systems with vacuum tubes:

A) Low pressure solar vacuum collectors

B) Solar direct pressure vacuum collectors

Solar energy passes through glass tubes heating the water inside the tubes. Since there is a vacuum between the tubes, this vacuum becomes an almost perfect heat insulator, the heat from the inner glass tube cannot escape back into the atmosphere - even in cold conditions.
As the specific gravity of cold water is heavier than hot water, hot water in glass tubes begins to rise into the insulated water tank, causing the cold water from the insulated water tank to sink (descend) into the glass tubes. As the cycle repeats, the water in the solar water heater is heated. This process is known as thermosiphon.
Thermosiphon vacuum collectors-system consists of:

- Main tank

The main tank is without pressure and serves as a tank for water and circulation. The vacuum tubes of the solar collectors enter the tank near the bottom, at an angle, allowing water to enter the vacuum tubes and exit the tank. The main tank has the possibility of installing an electric heater in case it is necessary to quickly increase the water temperature.

- Auxiliary tank

It is installed on top of the main tank without pressure. Heated water has a lower density compared to colder water, that is, warmer water needs more storage space. Extra volume
required for hot water is provided with an auxiliary tank. This auxiliary tank controls the flow of water from the water supply network to the main tank.

- Frost protection

Solar vacuum collectors are a low-pressure frost-resistant system, when properly installed. Adequate thermal insulation materials must be used as a means of insulating pipes.

B) Solar direct pressure vacuum collectors

Advantages:
- high pressure solar collectors can accept the connection of the water supply network up to 6 Bar;
- wide area of application, households, apartments, hospitals, houses, hotels, etc .;
- contributes to savings of 45-60% from your electricity consumption;
- reliable and environmentally friendly; - lifespan up to 20 years.



DIRECT PRESSURE SOLAR VACUUM COLLECTORS

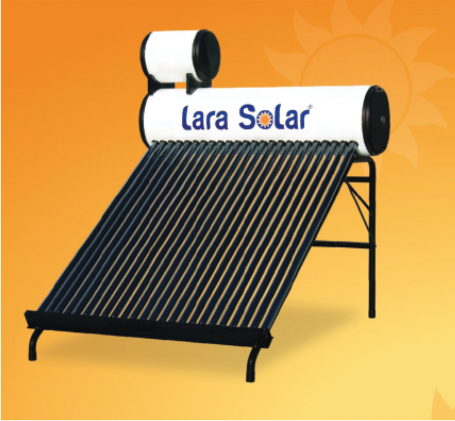

KGS1 - 2447

Number of pipes	24
Pipe dimensions	47*1800
Hot water capacity	180 L
Cold water capacity	30 L
Cold water supply	1/2
Hot water drain	3/4
Interior material for storage	304 chrome-nickel
Exterior material	Statically painted galvanized iron
Insulation material	Polyurethane

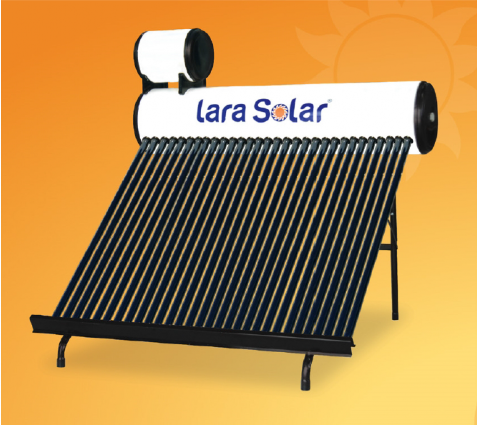

KGS1 - 3047

Number of pipes	30
Pipe dimensions	47*1800
Hot water capacity	230 L
Cold water capacity	30 L
Cold water supply	1/2
Hot water drain	3/4
Internal storage material	304 chrome-nickel
Exterior material	Statically painted galvanized iron
Insulation material	Polyurethane

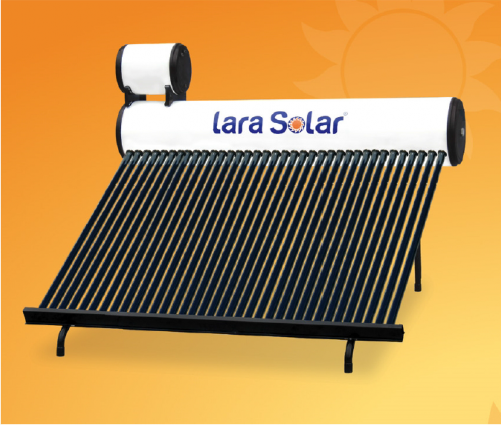

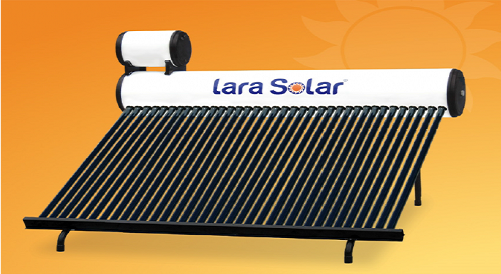

KGS1 - 3647

Number of pipes	36
Pipe dimensions	47*1800
Hot water capacity	270 L
Cold water capacity	30 L
Cold water supply	1/2
Hot water drain	3/4
Internal storage material	304 chrome-nickel
Exterior material	Statically painted galvanized iron
Insulation material	Polyurethane
